What is the cyclone dust collector in the textile sludge drying equipment assembly line

We know that in the treatment of dry waste gas, there are many kinds of waste gas purification equipment, such as bag filter, cyclone dust collector, desulfurization scrubber and so on. These equipment can be used alone or in combination. The cyclone is a common waste gas treatment equipment, and also one of the environmental protection devices to realize the whole textile sludge drying equipment assembly line. Next, we will take you to understand some related knowledge about the cyclone.

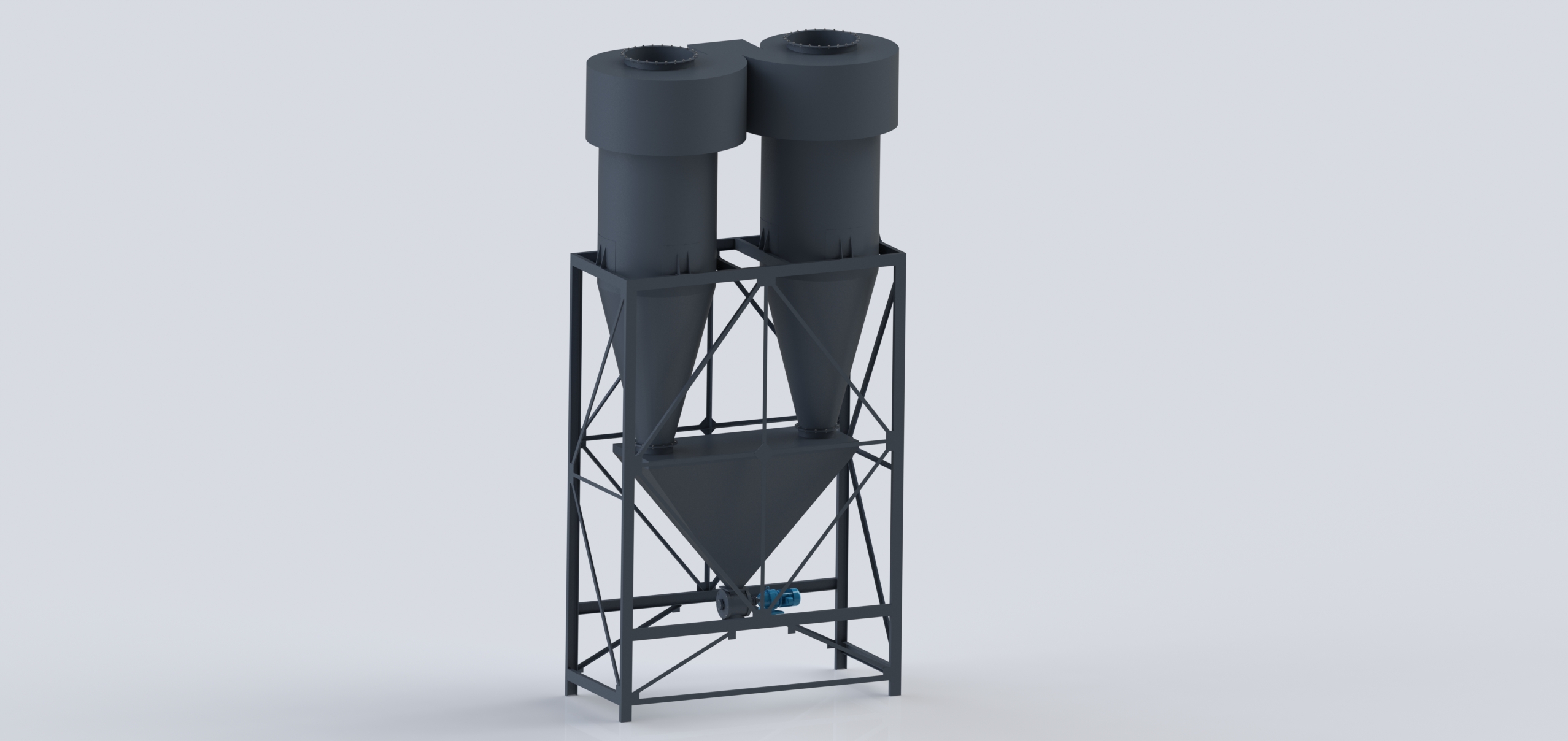

Generally speaking, the cyclone is composed of the following parts: cylinder, cone, ash hopper, inlet pipe and exhaust pipe. Although there are many kinds of equipment, such as double tube type, multi tube type, mother child type and so on, the basic principle and structure are similar. The dust can be separated and dispersed from the air under the action of centrifugal force by rotating air flow, which can process 5 ~ 10 um dust particles. The equipment has the advantages of simple structure, easy manufacturing, installation and maintenance management, and low equipment investment and operation costs, and high cost performance. After the dust containing gas discharged from the textile sludge drying equipment enters into the cyclone dust collector, the dust will produce separation effect in the strong rotating air flow, and the particles with higher density will fall into the ash discharge pipe due to the loss of inertia. In the process of continuous decline and rise of the spiral flow, the gas body will be discharged through the exhaust pipe after reaching the top.

In the normal operation of textile sludge drying equipment, regular inspection and maintenance of dust removal equipment is also required. For example, check the wear condition of the wear-resistant lining inside the cyclone dust collector, the internal clearance size of the equipment, the flexibility of the ash unloading device and the sealing of the equipment, etc. Regular inspection and repair can ensure the normal work of dust removal equipment and effectively extend the service life of the equipment.

In general, when we use textile sludge drying equipment to dry materials, we need to correctly select dust removal equipment, and do the correct operation and routine maintenance, so as to make the dust removal equipment play its due role in environmental protection, so as to ensure the normal and smooth operation of the drying production line.
